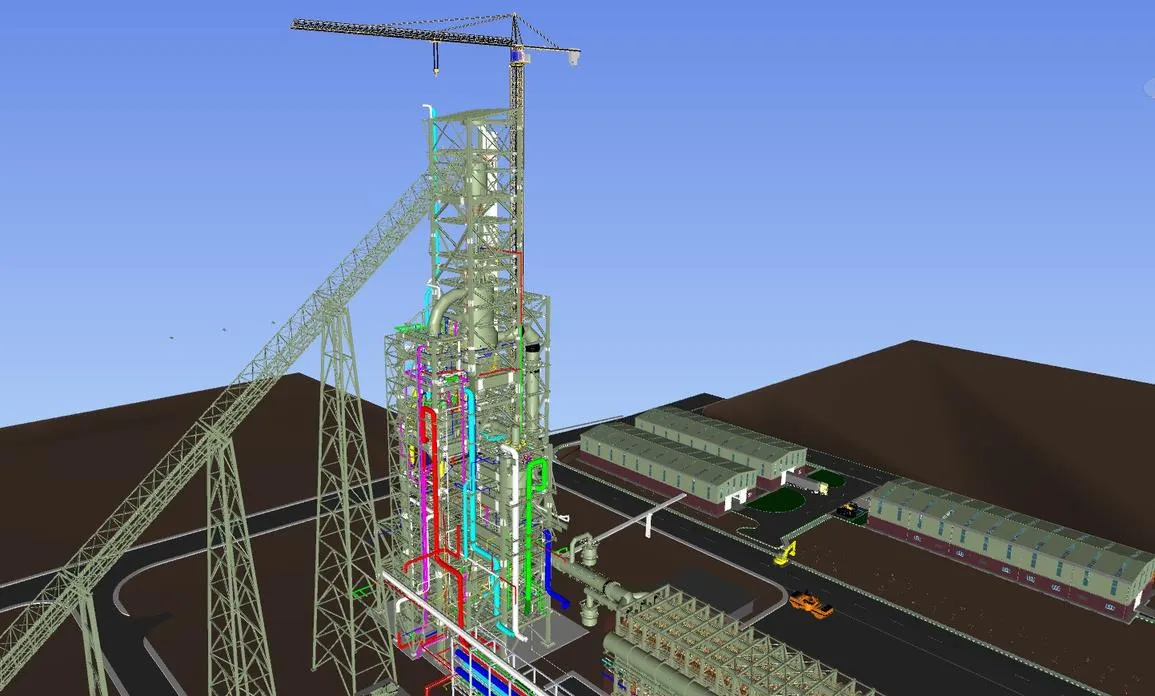

Federated model of a 50-building industrial site — architecture, structure, MEP, roads, and underground utilities in one coordinated file.
About the project
Large industrial development with up to 50 office and industrial buildings. The client needed a full 3D coordination model plus per-building drawings before construction started.
Client request
3D modeling of architecture, structure, and MEP for every building; modeling of roads and underground utilities; clash resolution across systems; a federated site model; and 2D drawings for each building.
4 phases from kickoff to handover.
Assign a unique ID to each building and model architecture, structure, and MEP in separate Revit files.

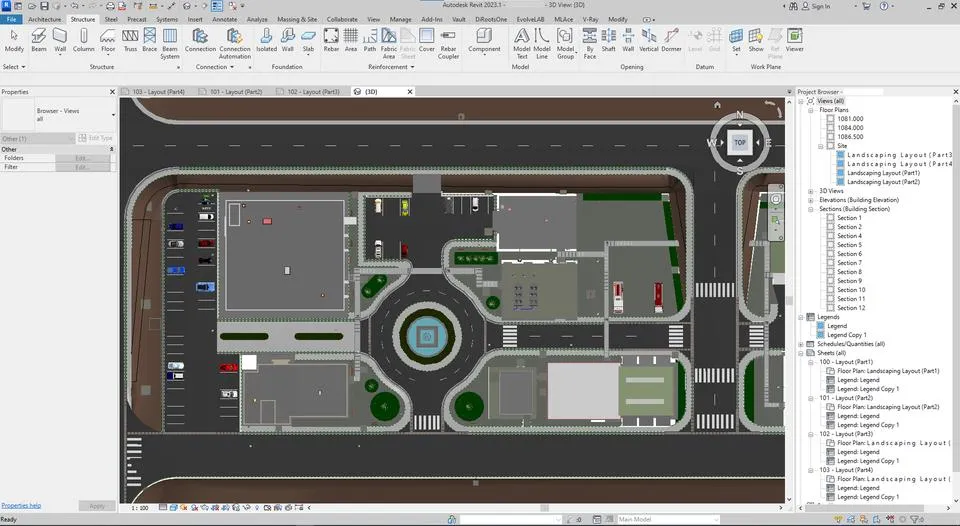

Industrial equipment modeled in Inventor; roads and underground utilities modeled in Revit.
Bring every model into Navisworks with the correct site coordinates for cross-discipline coordination.
Fix clashes back in the source software and re-federate the site until every discipline aligns.

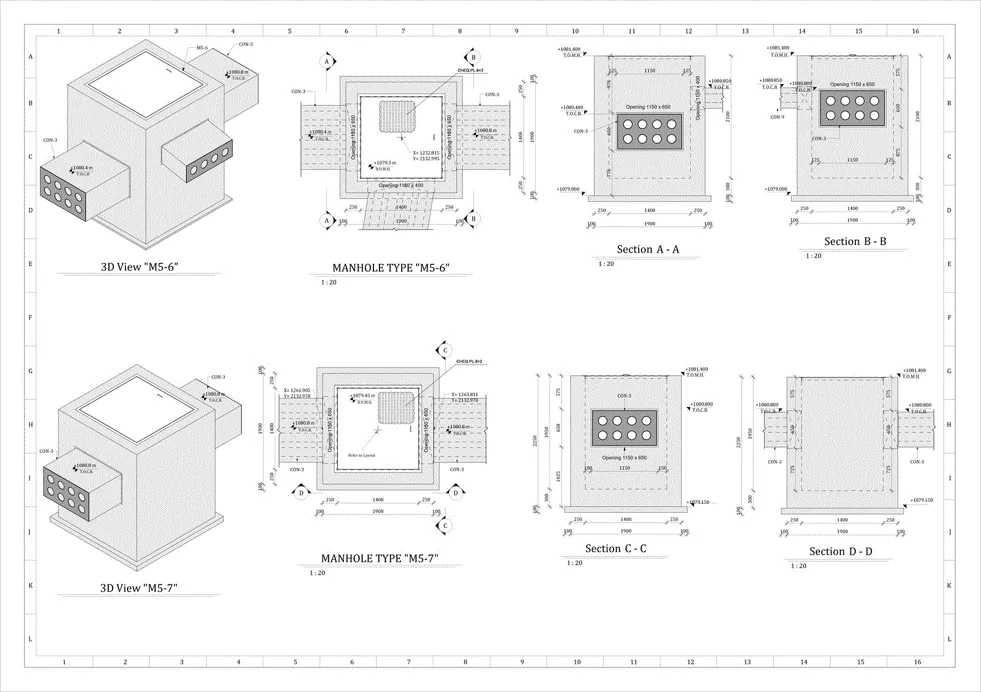

200+ Revit files federated into one site model, per-building 2D drawings, and a fully coordinated underground utility layout.
