113 m industrial furnace, ~1,000 tonnes of steel — modeled to LOD 350 with full clash resolution and shop-ready drawings.
About the project
This ~113-metre industrial furnace is used to transport and produce materials for steel production. Scope covered modeling the full structure, running clash detection against the process equipment, and issuing execution drawings for fabrication.
Client request
LOD 350 model in Revit, coordination with the mechanical equipment package, and shop-ready drawings that the fabricator could build from directly.
4 phases from kickoff to handover.

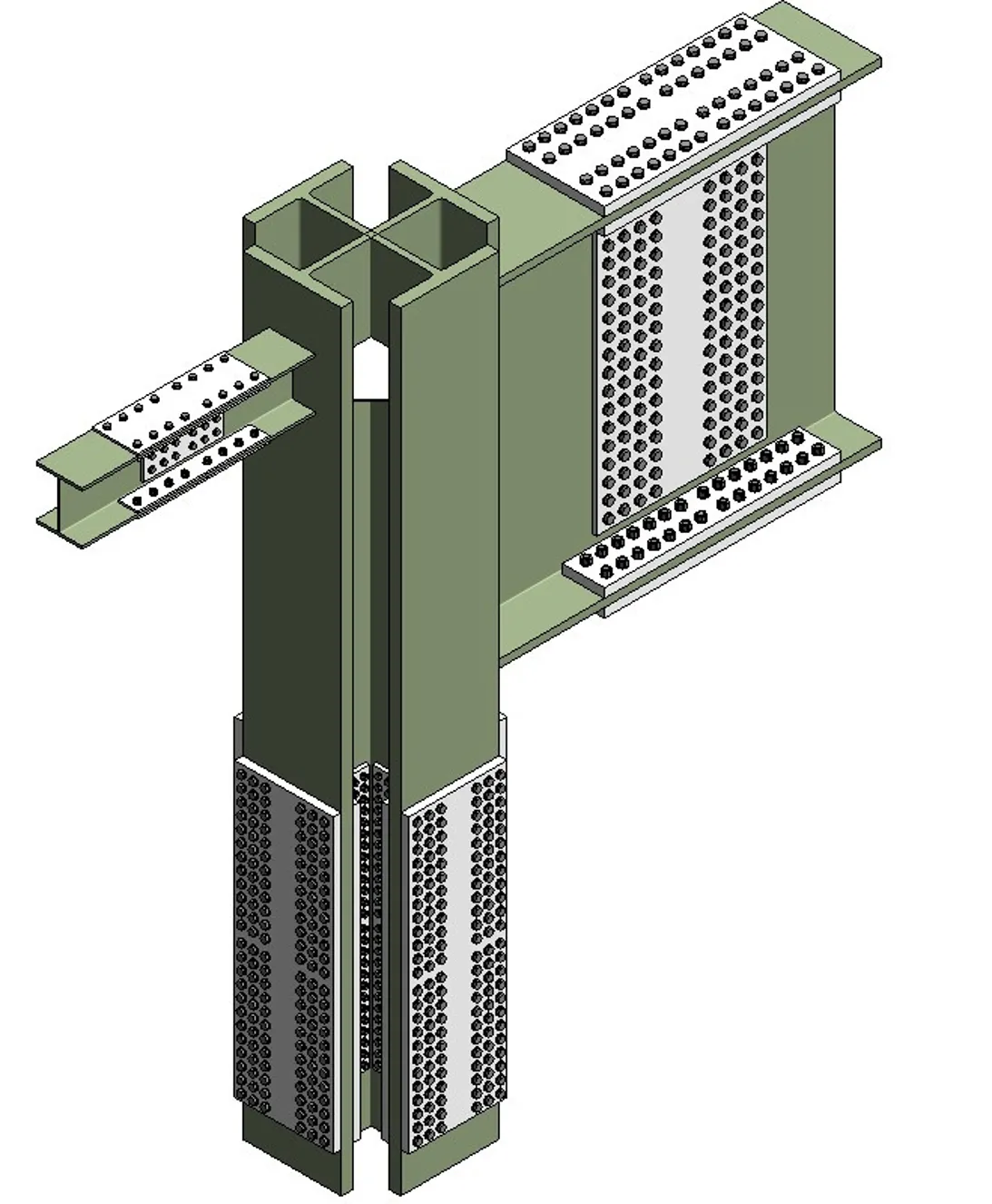

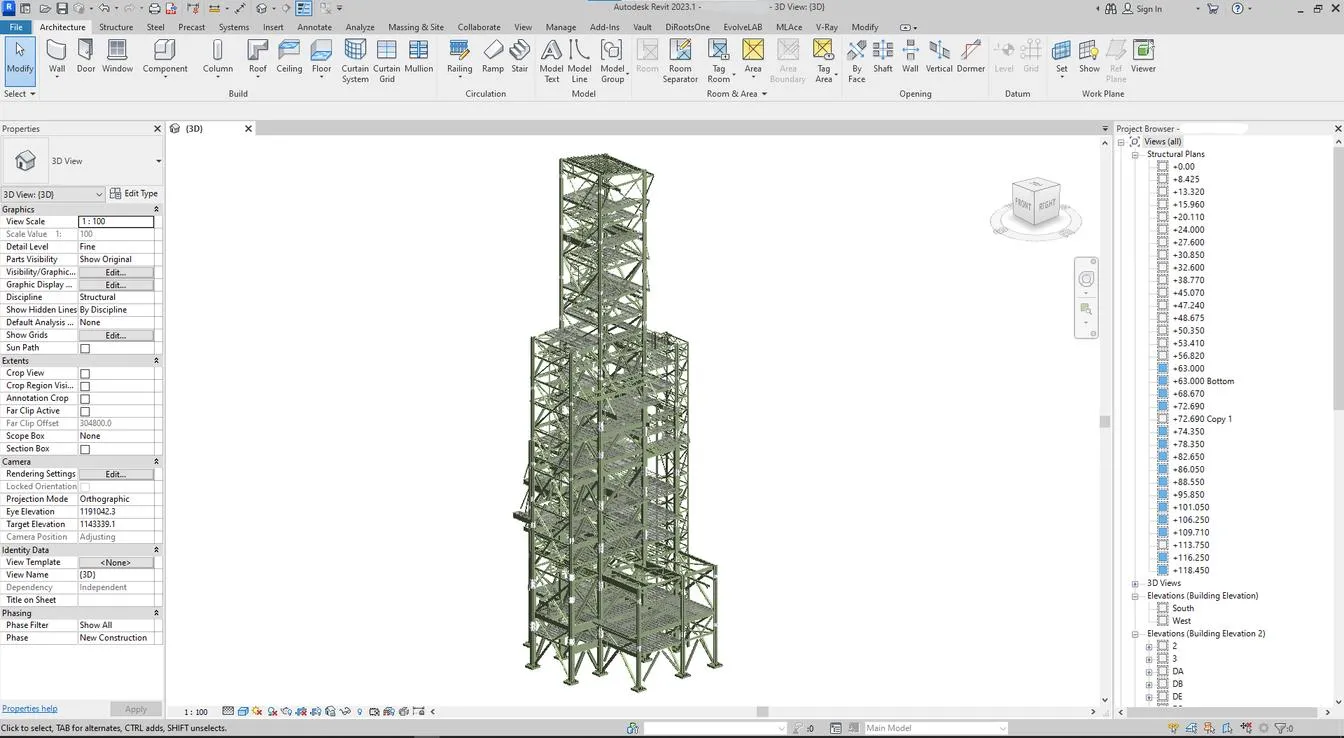

Build the Revit model from the engineering package, resolving structure-to-structure clashes during modeling.
Load the structural model into Navisworks alongside the mechanical equipment and run full clash detection.
Coordinate multiple rounds with the mechanical team to resolve every structure-to-equipment collision.

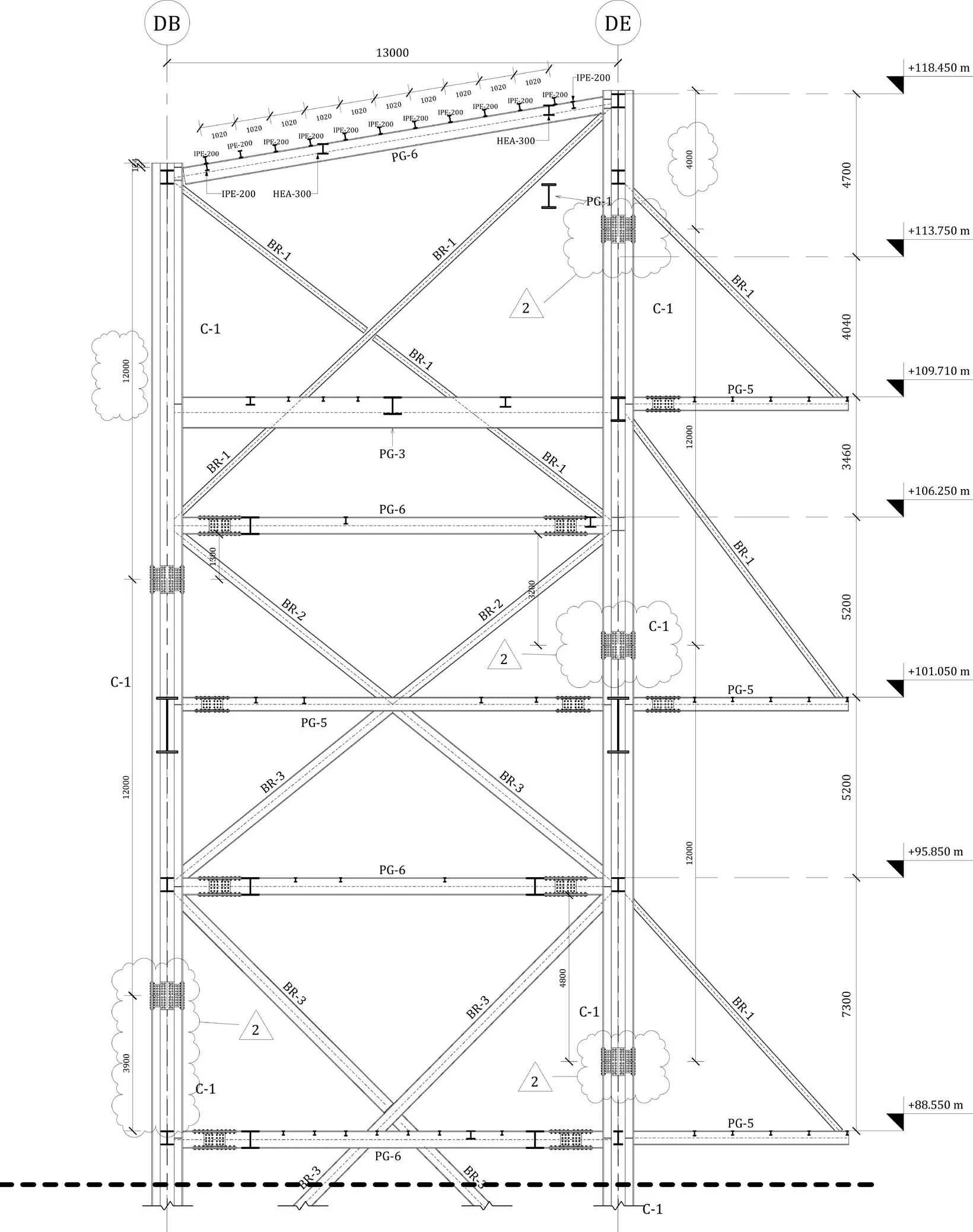

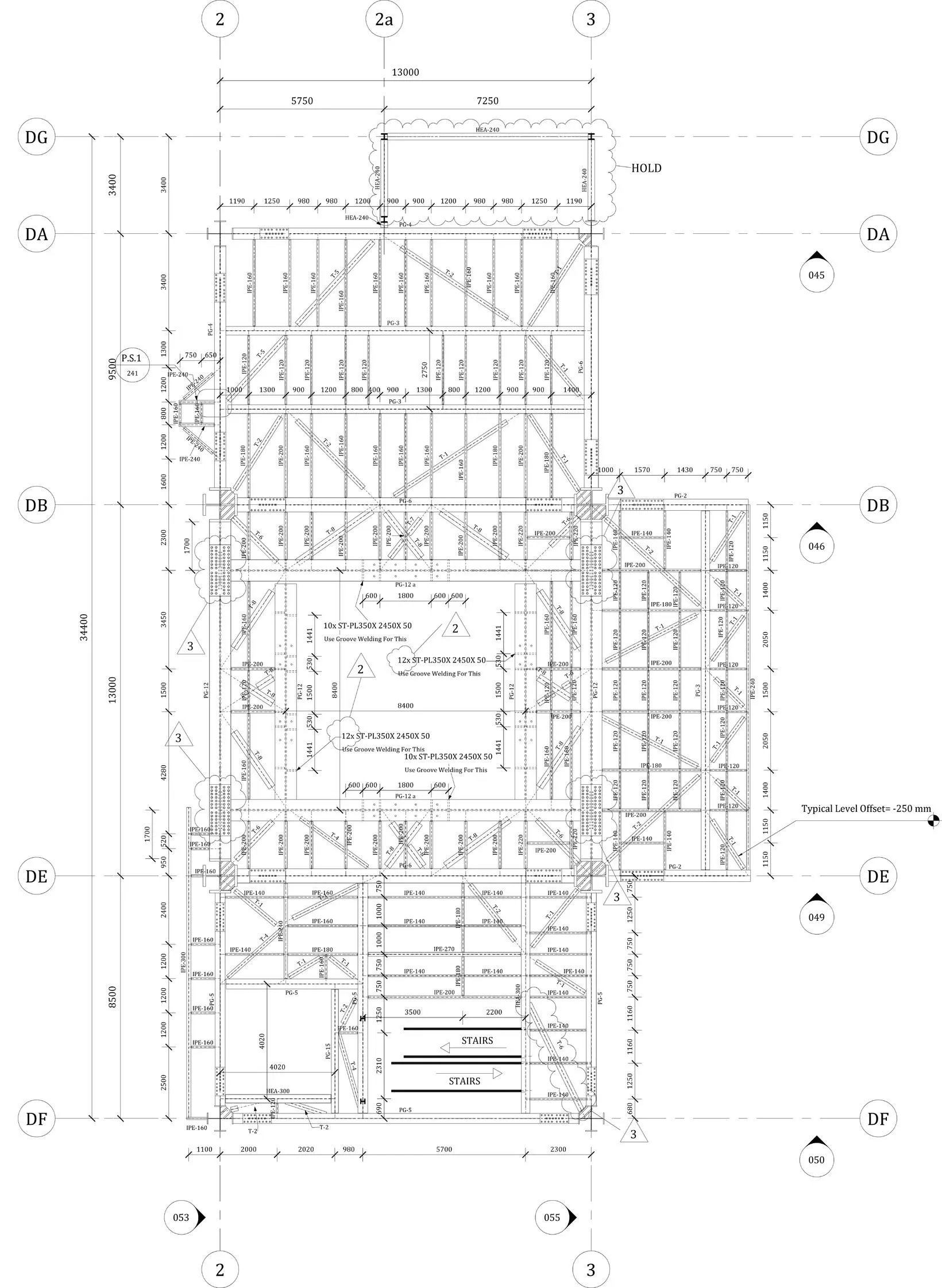

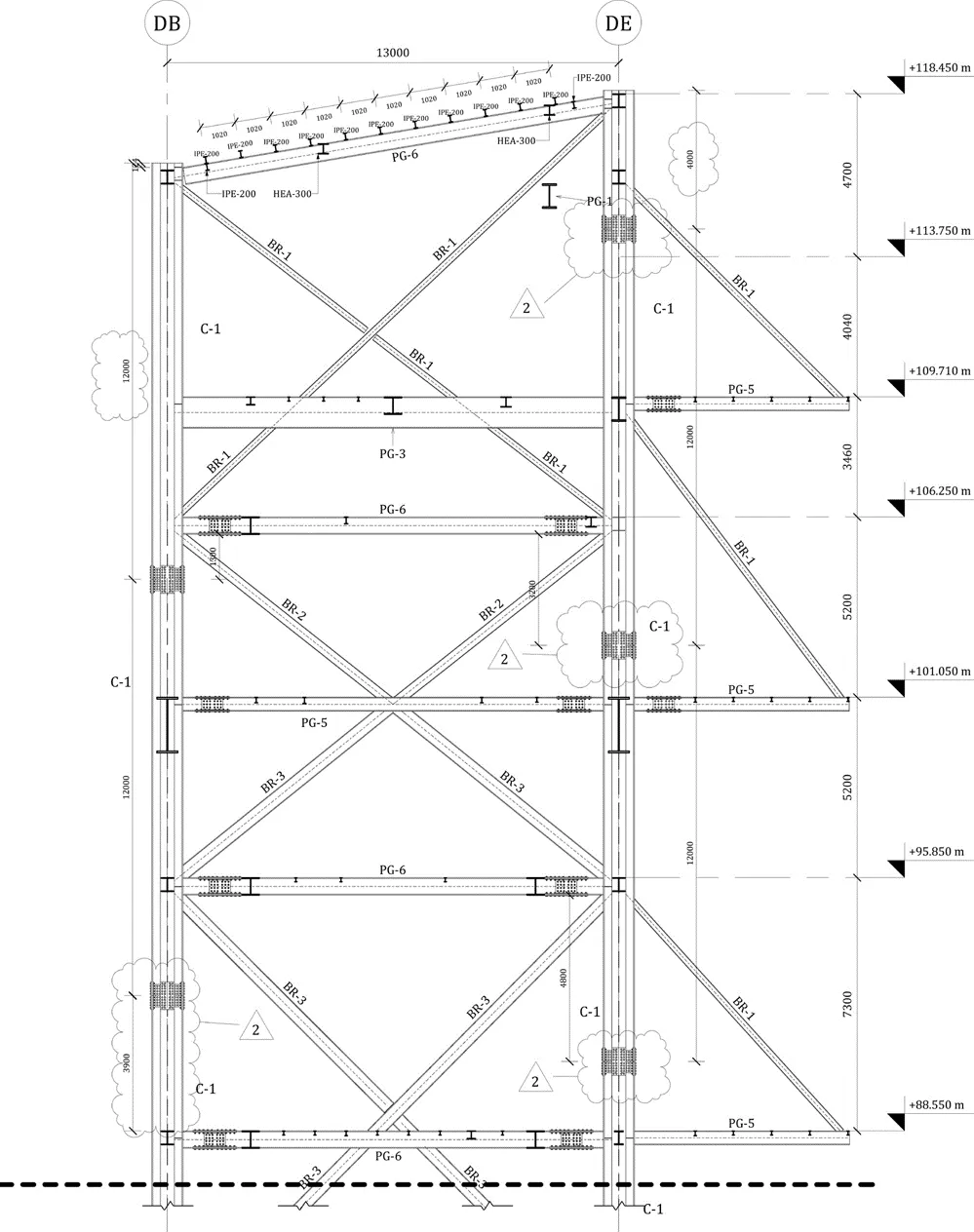

Produce the execution drawings from Revit for the fabricator to build from.
LOD 350 Revit model, resolved clash log, and a full set of execution drawings delivered for fabrication.

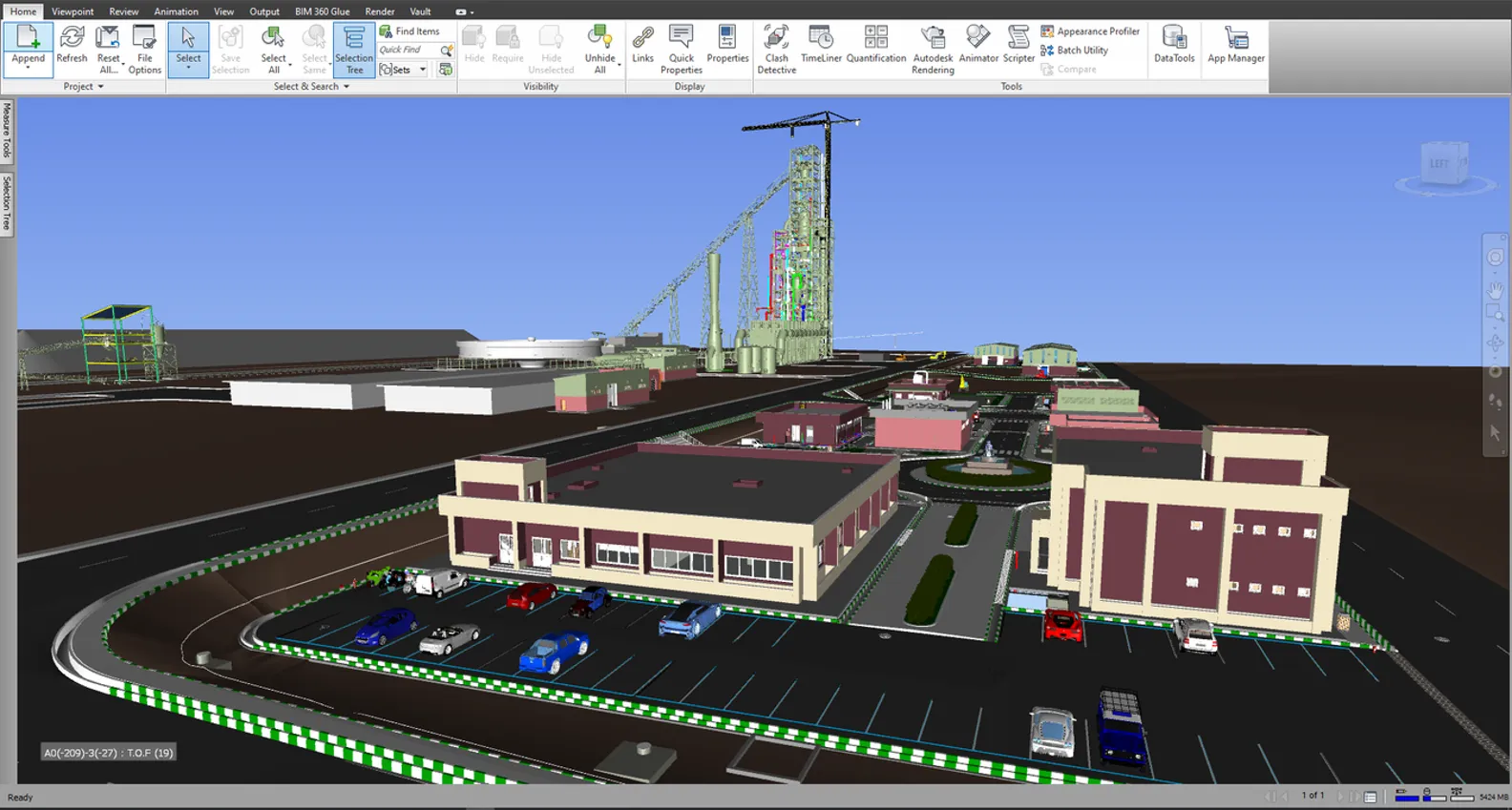

BIM Modeling Federated model of a 50-building industrial site — architecture, structure, MEP, roads, and underground utilities in one coordinated file.
View project

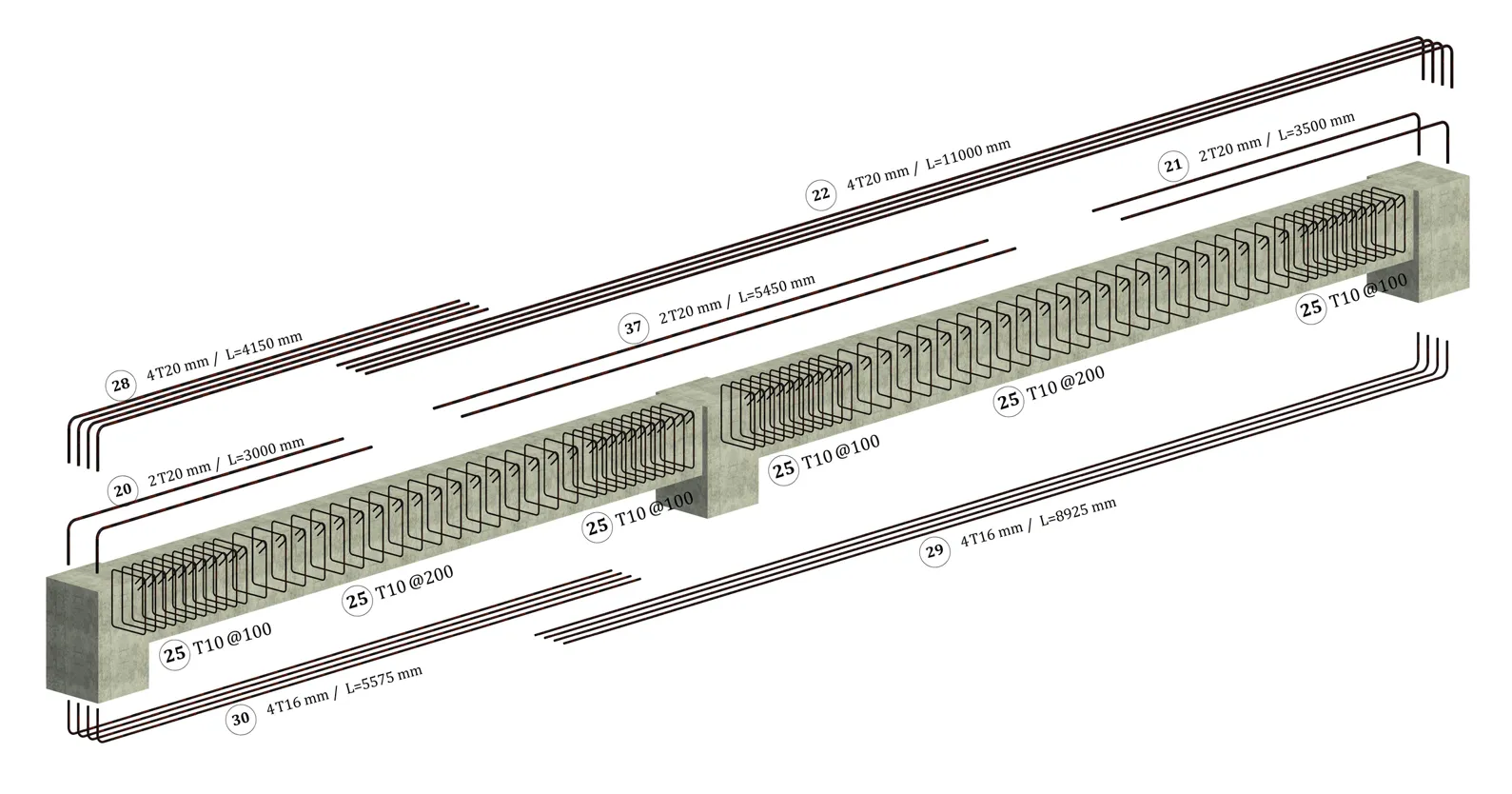

BIM Modeling Cast-in-place concrete mechanical room with full rebar detailing — material takeoffs and bar bending schedules ready for site.
View project

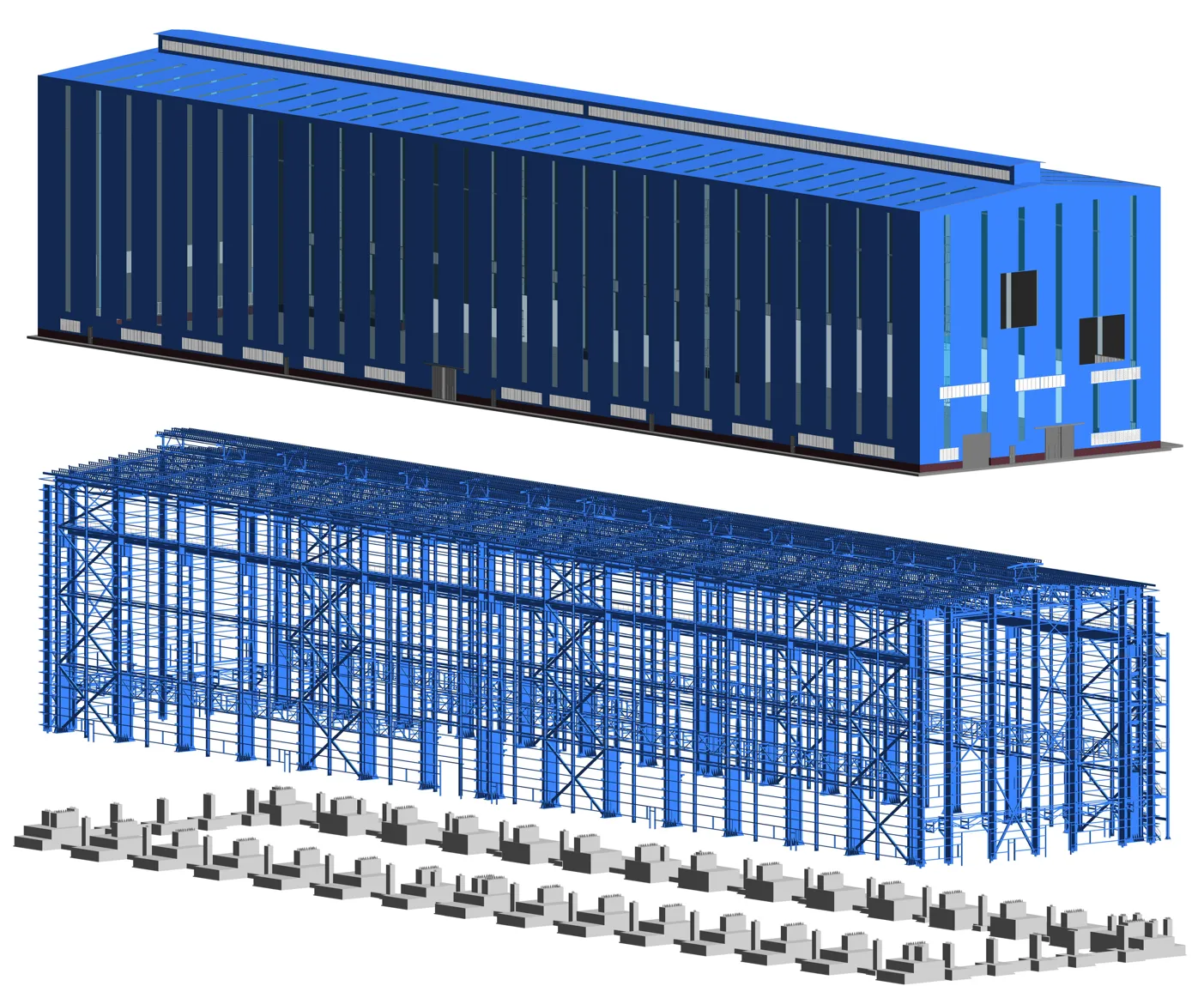

BIM Modeling 6,700 m² industrial concentrator — steel structure with all connections, reinforced foundation, and cross-discipline coordination.
