6,700 m² industrial concentrator — steel structure with all connections, reinforced foundation, and cross-discipline coordination.
About the project
Industrial concentrator building of approximately 6,700 m². Scope covered architecture, steel structure with all connections, and foundation with full reinforcement.
Client request
High-detail modeling to resolve interactions between the structure and industrial equipment, followed by coordinated 2D drawings at the end.
4 phases from kickoff to handover.

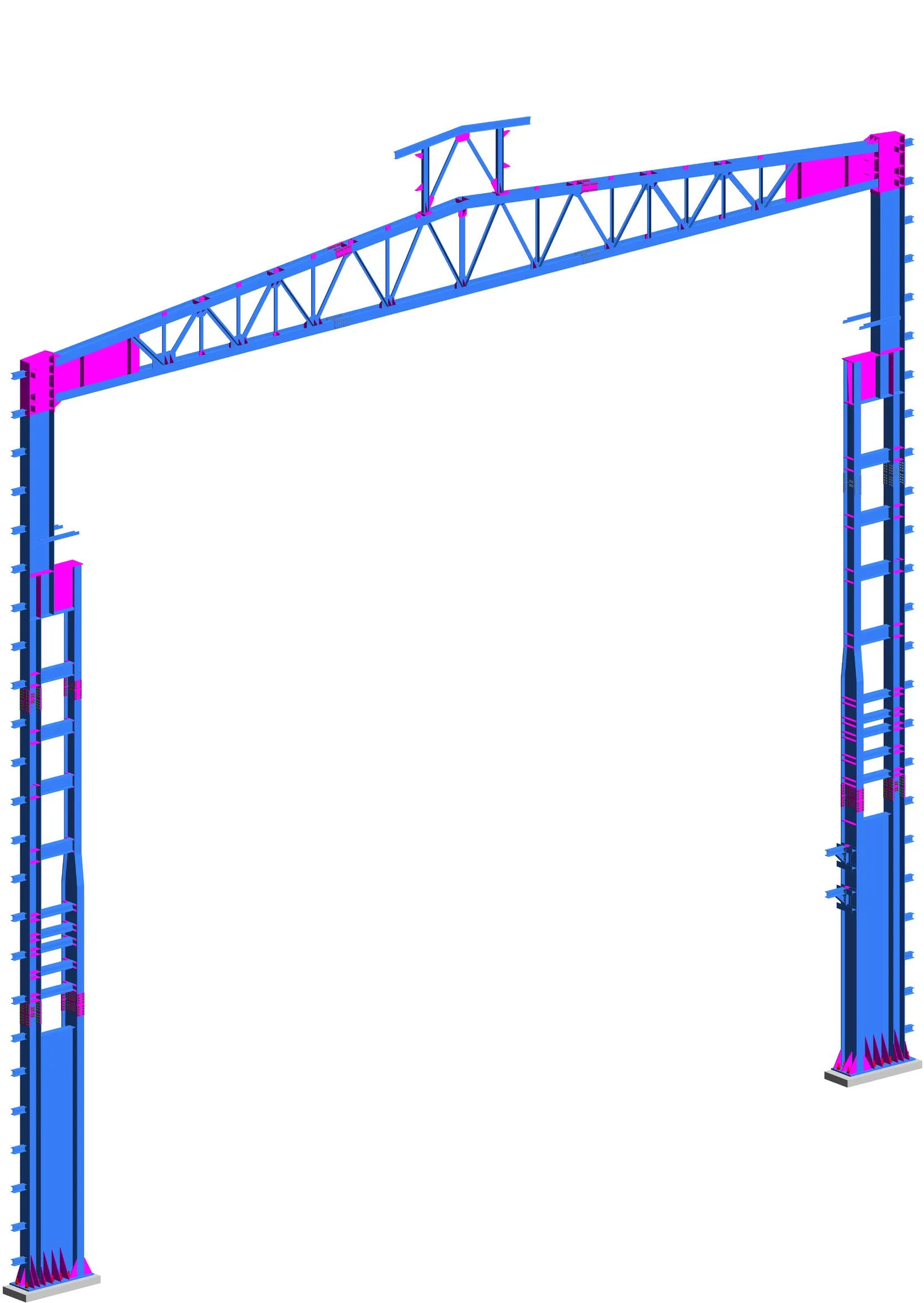

Model the structure from the engineering package in Revit with full steel connection detailing.
Run clash detection against mechanical equipment in Navisworks and correct the model.
Model the architecture following the design drawings on top of the coordinated structure.

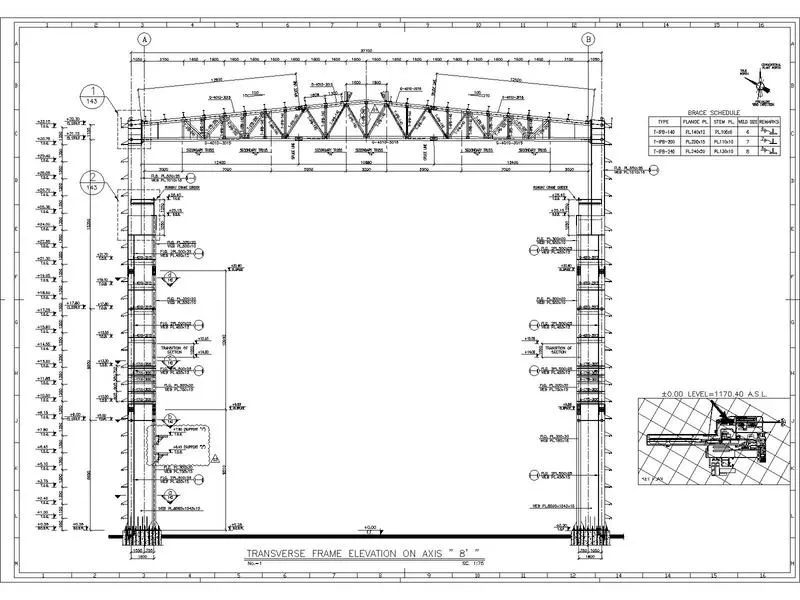

Resolve architecture-to-equipment clashes and issue structural and architectural drawings from Revit.

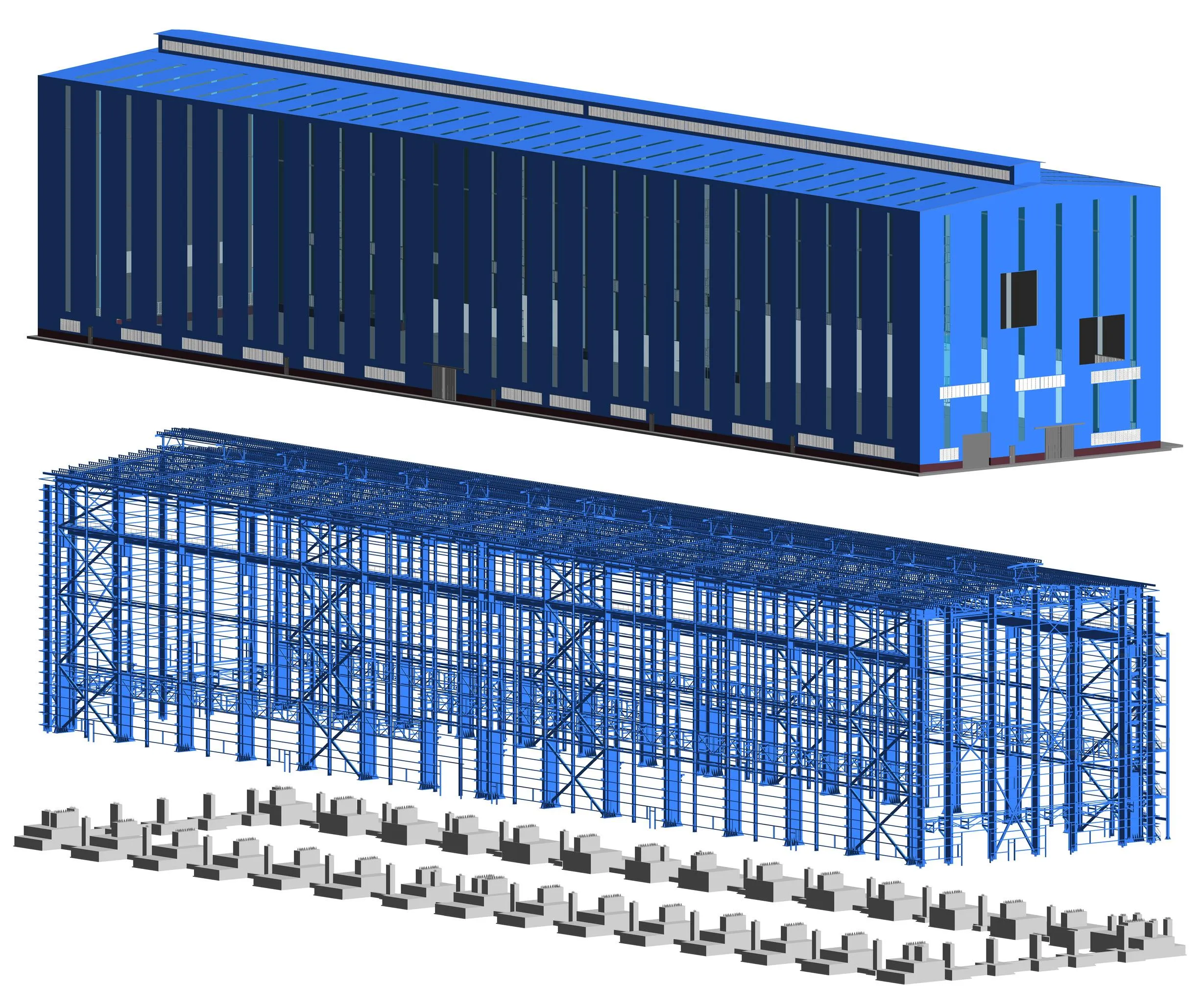

LOD 350 model of architecture, structure, and foundation with resolved clashes and issued drawings.
